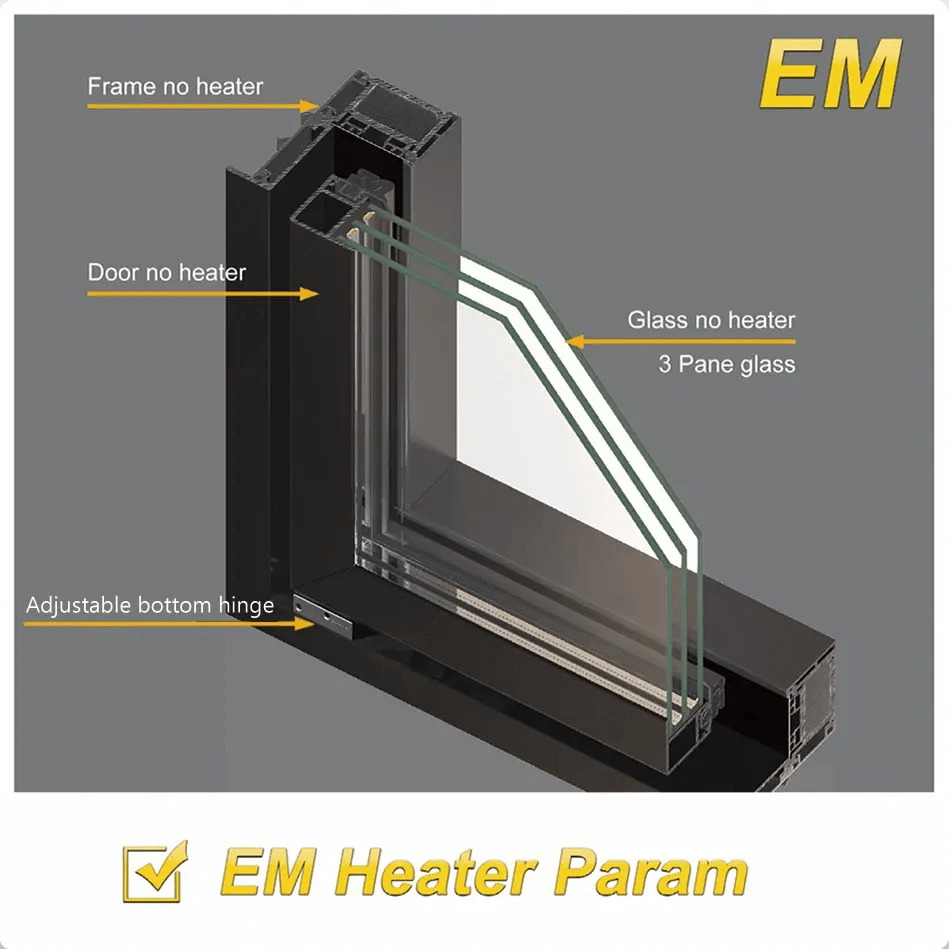

Energy saving cooler glass door with three non heated panes

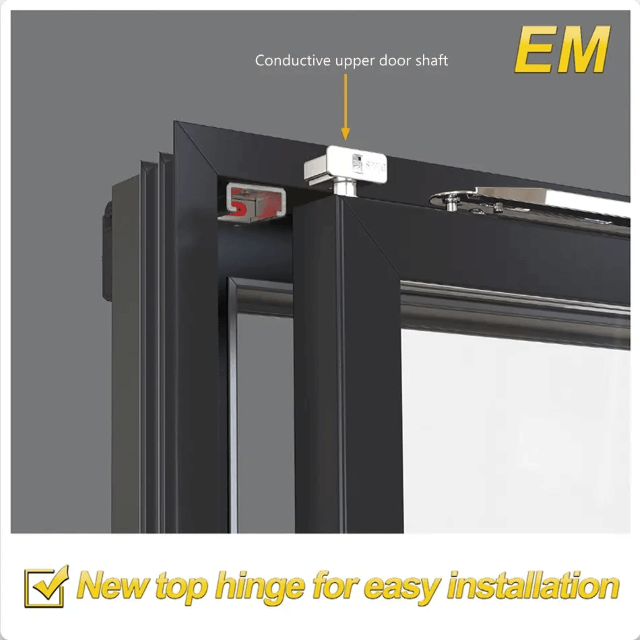

Energy saving glass easy installation door hinge and conductive shaft

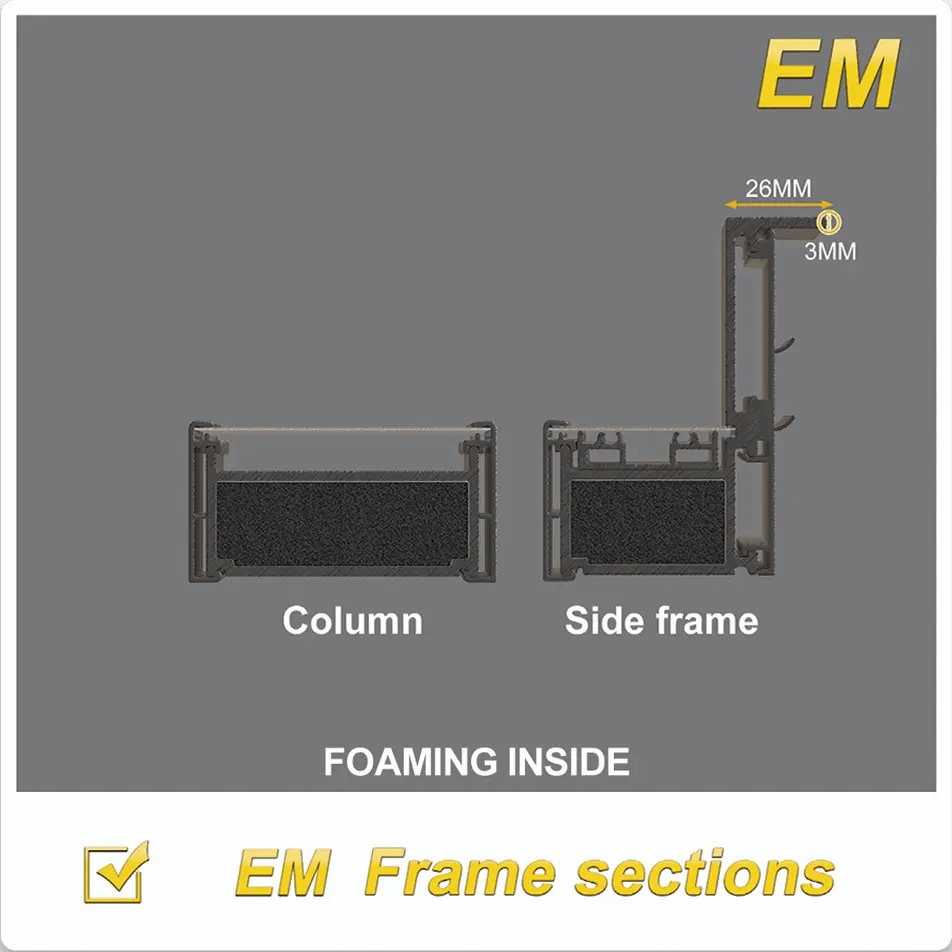

Energy saving glass door fiberglass frame with foam thermal break

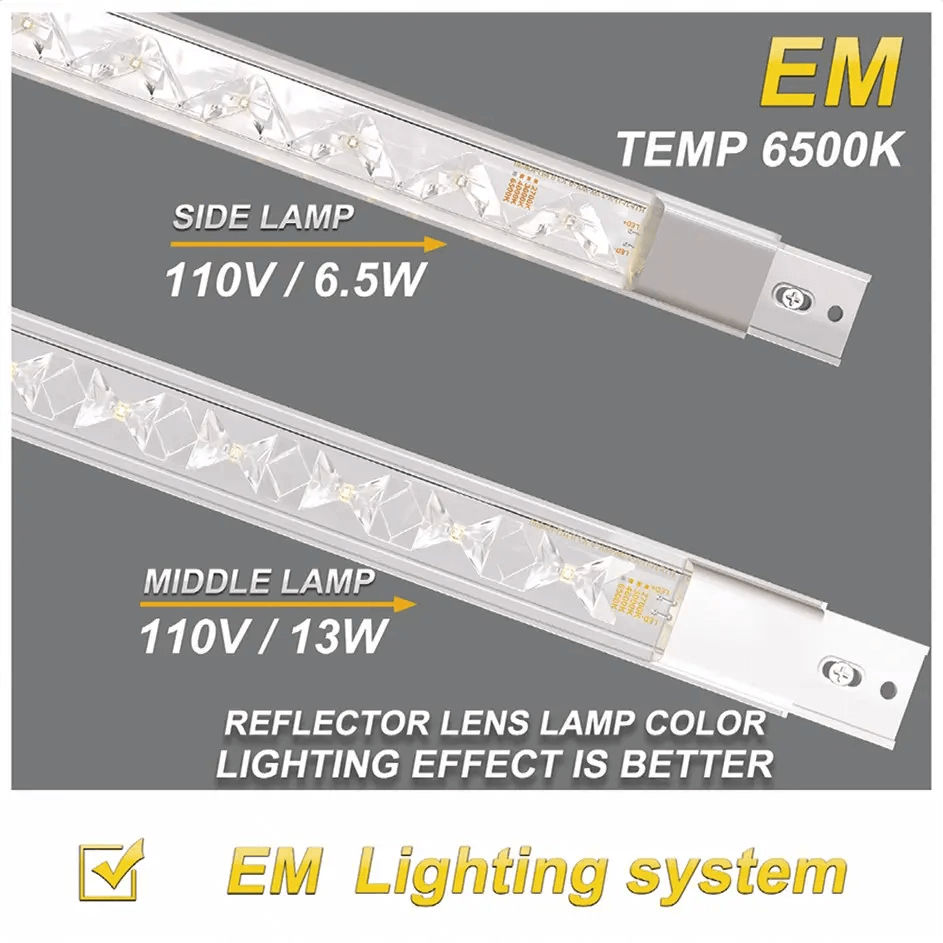

Energy saving glass door lighting reflector lens lamp

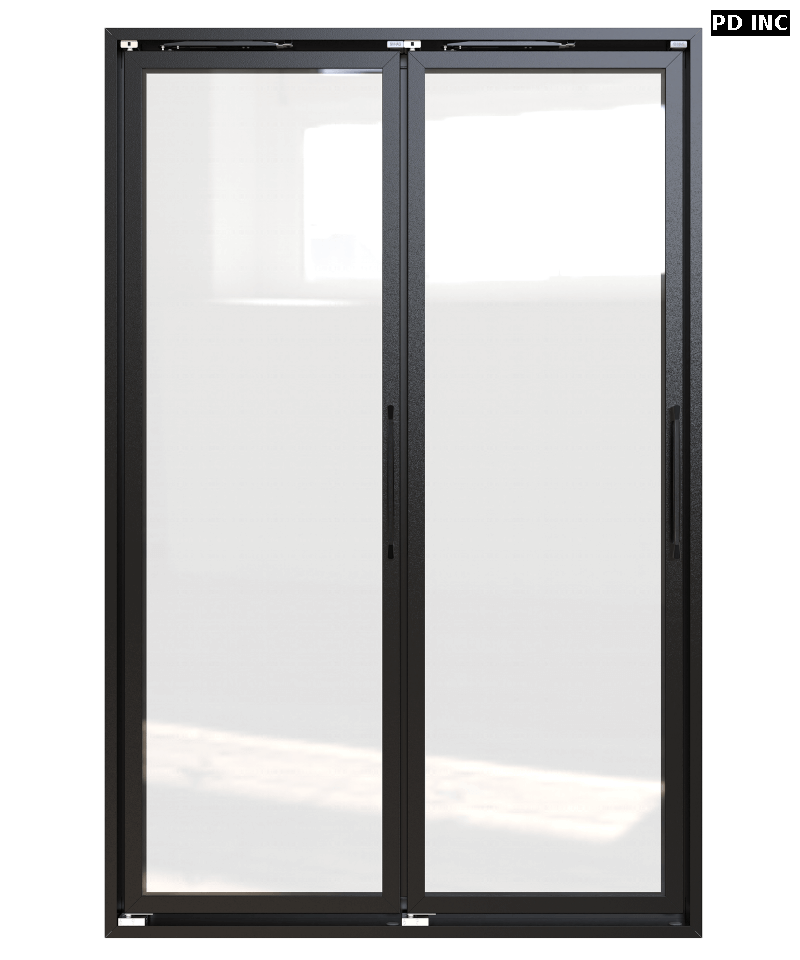

EM-01 Energy Saving Glass Door and Frame

The EM-01 Energy-Saving Glass Door represents PD's highest-performance solution—featuring a fiberglass composite frame with a built-in thermal break and triple-pane low-E insulated glass. Engineered to combat condensation and heat loss, it's ideal for high-humidity or energy-sensitive installations.

Size:	24 x 75 inch 30 x 79 inch
Temperature:	Cooler Freezer
Frame:	1 Door Frame 2 Door Frame 3 Door Frame 4 Door Frame 5 Door Frame
Availability:

Inquire

Product Description

Standard Features:

Triple Non-Heated Glass With Argon Gas (Cooler)
Non-Heated Door Frame and Frame (Cooler)
Triple Heated Glass With Argon Gas (Freezer)
Heated Door Frame and Frame (Freezer)
Slim Handle
Fiberglass Composite Material Door Frame and Frame
26mm Wide Flange
Door Hold-open and Self-Close
New Hinge System
TPE Magnetic Door Gasket
Temp Sensor for Energy Saving
6500K Double Reflector Lens Lamp
At Least 40% More Energy Saving Than Standard and Pro
Easy Connect Conductive Upper Door Shaft

Optional features:

Reversible Door Swing
Customized Logo
Color: Black, Silver
Cylinder Lock Add-On

Available Frame Opening:

Custom opening composition from 1 to 5.

Frame

Structure

① Upper Hinge

The lock tongue uses 0.8mm high -strength steel, deductioload > 500kg6A continuous current temperature rising <5K Anti fatigue door opening and closing>300000 times

② Bottom Hinge

The reliability of the regulating mechanism reaches 10KCAnti fatigue door opening and closing>300000 times

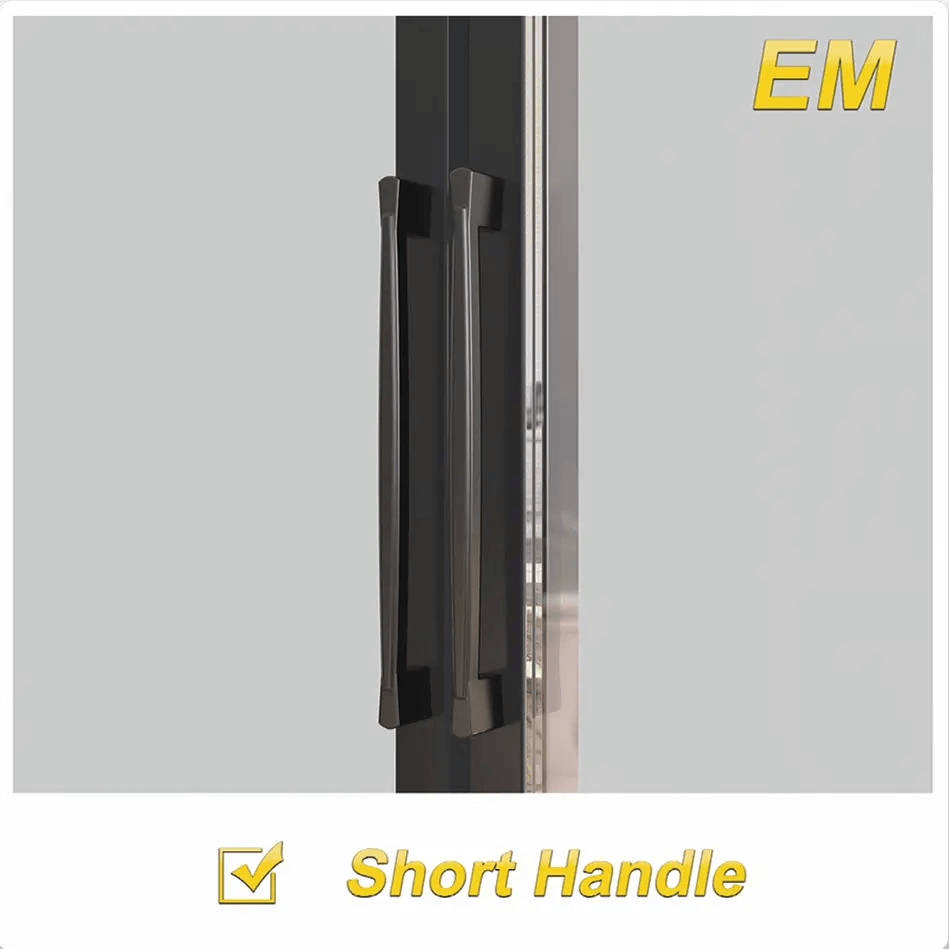

③ Slim Handle

Suitable for any hand shape, more convenient to open and close the door

④ Door Stopper

Door opens to 90 degrees and stops, making it easier for customers to take the goods

⑤ LED Lighting

High protection performance-lP65
Long service life -5 years warranty
Flexible customization
